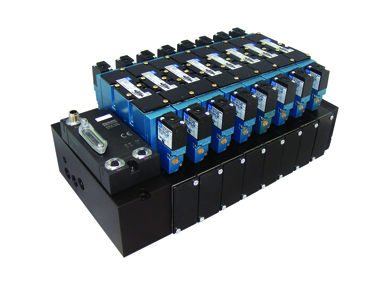

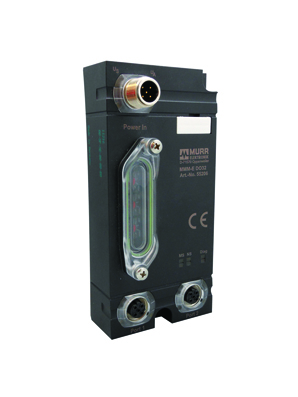

Murrelektronik Manifold Module The Murrelektronik Manifold Module (MMM) is a new and effective way to integrate MAC Valves into any Ethernet I/P™ network. The compact design of the MMM is a drop-in addition to MAConnect™ valve manifolds and is compatible with all MAConnect™ valves. The module is available in two models: 16 or 32 solenoid output capability with an output power of up to 5.4W per solenoid or maximum power consumption of 4A. The MMM comes complete with an integrated Ethernet switch allowing for other devices to follow behind the module with continuous communication.       This MMM bus node is a stand-alone device. The IP addressing of the node is configurable through an integrated web browser that requires no additional software or through the use of the selector switches mounted on the module. This configuration makes the MMM compatible with any PLC Master capable of communication through Ethernet I/P™ protocols.                 The fully potted design of the MMM allows for operations in rugged environments and maintains the IP67 rating of the connections. Power is provided to the MMM through a standard 5 pole M12 connection that allows for separation of the module power from the output power. This allows for the manifold to stop all output power while maintaining communications with the bus module. Diagnostics include module status, network status, short circuit and overload protection ensuring that your installation has enough information to properly react to situations.       MMM Ethernet I/P Competitor Comparisons Cube 67+ V Valve Connectivity Solutions Compact IP67 The Murrelektronik Manifold Module (MMM) configures easily to control up to 32 output signals on various MAC Valves pneumatic manifolds. The rugged, fully potted design of the MMM insures IP67 sealing of the module and long life. The integrated ethernet switch allows for a continuation of the ethernet signal to other ethernet devices like additional MMM modules or IMPACT67 where input signals can also be processed. Compact IP20 Point of use applications often begin inside the control cabinet. Murrelektronik answers these needs through products like IMPACT20. The IMPACT20 family is an excellent choice to start signal processing in confined spaces and low I/O count applications. The single part number and pre-defined I/O selections allow for fast installations, simple choices, and reduce components. The concept continues for the Murrelektronik Manifold Modules (MMM) . Simply continue the ethernet signal from the integrated Ethernet switch on the IMPACT20 Modules to the MMM and configure up to 32 outputs for pneumatic valve control. Centralized IP20 CUBE20 is the newest configurable I/O system from Murrelektronik. The modular system can handle most I/O systems with the wide variety of plug in modules. Available with digital in and out, analog in and out, RTD and thermocoupler modules as well as the ability to interface with other CUBE IP67 modules the CUBE20 system offers dense I/O control in a small space with state of the art designs. The Murrelektronik Manifold Module (MMM) integrates through the Ethernet I/P network to control MAC Valves pneumatic devices. Decentralized IP67 For the most flexibility and modularity in an IP67 machine mounted I/O system CUBE67 is the only choice. More system modules to meet a wide variety of applications and devices the CUBE67 system reduces your wiring effort on machine I/O control. Integrate system modules for MAC Valves, digital inputs, analog signals, RTD, thermocouplers, RS232 &485, and now I/O Link, the CUBE67 I/O system can solve your installation needs.
